Baggage Handling Systems
Industry Challenges
Airports depend on reliable baggage handling systems to keep operations running smoothly and passengers satisfied.
Any failure in these systems can create costly disruptions and damage reputations.
- Baggage must arrive on time and in good condition
- Even minor issues can cause delays and frustration
- Equipment requires maximum reliability, efficiency, and uptime
- Bearings must provide durability, precision, and smooth operation
Solutions by Solve
Solve Industrial Motion Group delivers bearing solutions designed to meet the toughest demands of airport baggage handling systems.
Our products are certified, reliable, and supported by responsive service. Solve is 1 of 4 bearing companies in the Americas to have BNP certified bearings Baggage Handling Systems (BHS).
- Housings made Cap ready.
- Open and Closed Cap options available.
- Fast and reliable customer service.
- Strategically located distribution centers with readily available inventory.
What does it mean to be BNP Certified?
- Precision manufacturing audits to evaluate dimensional accuracy and consistency across production runs.
- Material testing to assess metallurgical properties, heat treatment, and fatigue strength.
- Performance and lifecycle tests to simulate real-world conditions under continuous cycles.
- Safety and compliance checks to ensure components meet international safety standards.
Mounted Units for Baggage Handling
Each Mounted Ball Bearing part number is a unique combination indicating the bearing's type, series, housing and shaft size.

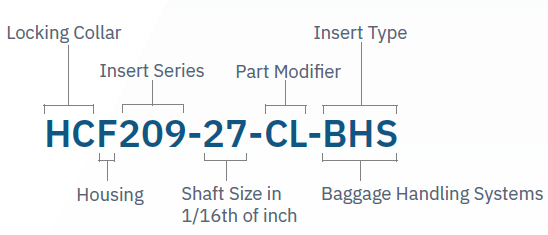

Mounted Ball Bearing Nomenclature
Locking Mechanisms
UC Set Screw
NA Eccentric
HC Eccentric
ER Set screw cylindrical O.D.
SA Light duty eccentric
SB Light duty set screw
UCX Medium duty set screw
CL Clamp collar
HUC High Temp set screw
Housing Types
P Pillow BlockWS Take Up (Wide Slot)
F 4-Bolt Flange
NF 4-Bolt Flange
FL 2-Bolt Flange
FB 3-Bolt Flange
HA Hanger Bearing
FC Piloted Flange
T Take Up
Part Modifiers
H4 Ductile Iron Housing
G Greaseable
N Non-Lubricatable
L3 Triple Lip Seal
MM Metric Bore
CL Closed Cap
Op Open Cap
Shaft Size
Inch in 16ths
Metrics as written
