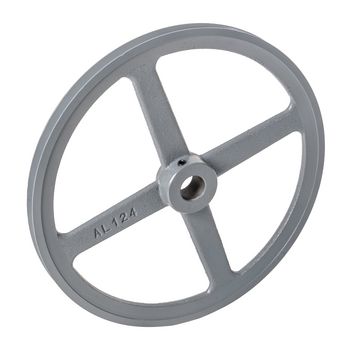

Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, 14 in (A) Pitch Dia., 14.16 in OD, Cast Iron Material

Name: Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, 14 in (A) Pitch Dia., 14.16 in OD, Cast Iron Material
Brand: MasterDrive
SKU: 2105000214

Not a distributor? Reach out to a Solve sales representative for pricing and availability.

Part #AM144-1 KW

SIMG #2105000214

Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, 14 in (A) Pitch Dia., 14.16 in OD, Cast Iron Material

Not a distributor? Reach out to a Solve sales representative for pricing and availability.

Finished Bore with Keyway and 1 Set Screw
Used with 4L, A Belts
Staically Balanced
Grey Painted Protective Coating
Part Weight: 5.2 lb

: Brand: MasterDrive
Belt Section Size: 4L, A
Bore Diameter: 1.00 in
Bore Type: Finished Bore with Keyway and 1 Set Screw
Duty Type: Light
Keyway Size: 1/4 x 1/8
Length Through Bore: 1.75 in
Material: Cast Iron
Number of Grooves: 1
Outer Diameter: 14.16 in
Overall Width: 1.75 in
Pitch Diameter: 14 in
Series: AL Light Duty Sheaves
: masterdrive-AM144-1

Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, 14 in (A) Pitch Dia., 14.16 in OD, Cast Iron Material
