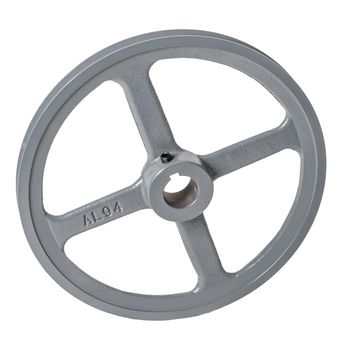

Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, No Keyway, 9.78 in (A) Pitch Dia., 9.93 in OD, Cast Iron Material

Name: Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, No Keyway, 9.78 in (A) Pitch Dia., 9.93 in OD, Cast Iron Material
Brand: MasterDrive
SKU: 2105000170

Not a distributor? Reach out to a Solve sales representative for pricing and availability.

Part #AL104-1

SIMG #2105000170

Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, No Keyway, 9.78 in (A) Pitch Dia., 9.93 in OD, Cast Iron Material

Not a distributor? Reach out to a Solve sales representative for pricing and availability.

Finished Bore with 1 Set Screw (No Keyway)
Used with 4L, A Belts
Staically Balanced
Grey Painted Protective Coating
Part Weight: 3 lb

: Brand: MasterDrive
Belt Section Size: 4L, A
Bore Diameter: 1.00 in
Bore Type: Finished Bore with 1 Set Screw (No Keyway)
Duty Type: Light
Length Through Bore: 1.06 in
Material: Cast Iron
Number of Grooves: 1
Outer Diameter: 9.93 in
Overall Width: 1.06 in
Pitch Diameter: 9.78 in
Series: AL Light Duty Sheaves
: masterdrive-AL104-1.000 KW

Light Duty V-Belt Sheave, 4L, A Belt Section, 1 Groove, 1.00 in Finished Bore, No Keyway, 9.78 in (A) Pitch Dia., 9.93 in OD, Cast Iron Material
